Introduction
The Eco-S Series Ultrapure Water System is the latest addition to our product line. As a manufacturer located in China, we take great pride in producing high-quality products using the latest technology and materials. The Eco-S Series Ultrapure Water System is the perfect example of this, as it provides an eco-friendly and sustainable solution for businesses in need of ultrapure water.
What is the Eco-S Series Ultrapure Water System?
The Eco-S Series Ultrapure Water System is a water purification system that is designed to provide ultrapure water for various industrial and laboratory applications. The system uses a combination of advanced technologies, including reverse osmosis, deionization, and ultraviolet sterilization, to remove impurities from the water.
The system is designed with eco-friendly features, including low energy consumption, zero-waste water production, and a minimal environmental footprint. It is also equipped with a smart control system that monitors water quality and maintains the system to ensure optimal performance.
Features and Benefits
The Eco-S Series Ultrapure Water System offers several features and benefits that make it an attractive choice for businesses.
1. Eco-Friendly: The system uses energy-efficient technology that reduces energy consumption and lowers costs. It also produces zero-waste water, which means there is no need for additional water treatment or disposal.
2. Cost-Effective: The Eco-S Series Ultrapure Water System is designed to be cost-effective, with low energy consumption and minimal water waste. This helps businesses save money on their utility bills and reduces their environmental impact.
3. High-Quality Water: The system uses advanced technologies, including reverse osmosis, deionization, and ultraviolet sterilization, to remove impurities from the water. This ensures that the water produced is of the highest quality and suitable for a wide range of industrial and laboratory applications.
4. Easy to Use: The system is designed with a smart control system that monitors water quality and maintains the system to ensure optimal performance. This makes it easy for businesses to operate and maintain the system.
Applications
The Eco-S Series Ultrapure Water System is suitable for a wide range of industrial and laboratory applications, including:
1. Electronics: The system is ideal for use in the electronics industry, where high-purity water is needed for manufacturing processes.
2. Pharmaceuticals: The system can be used in the pharmaceutical industry for producing purified water for use in drug manufacturing and testing.
3. Laboratories: The system is suitable for laboratory applications that require ultrapure water, such as research and experimentation.
4. Food and Beverage: The system can be used in the food and beverage industry for producing purified water for use in production processes.
Conclusion
The Eco-S Series Ultrapure Water System is a high-quality, eco-friendly, and cost-effective solution for businesses in need of ultrapure water. It is designed with advanced technologies, including reverse osmosis, deionization, and ultraviolet sterilization, to provide the highest quality water for a wide range of industrial and laboratory applications. With its smart control system, low energy consumption, and zero-waste water production, the Eco-S Series Ultrapure Water System is the perfect choice for businesses looking to reduce costs and their environmental impact.

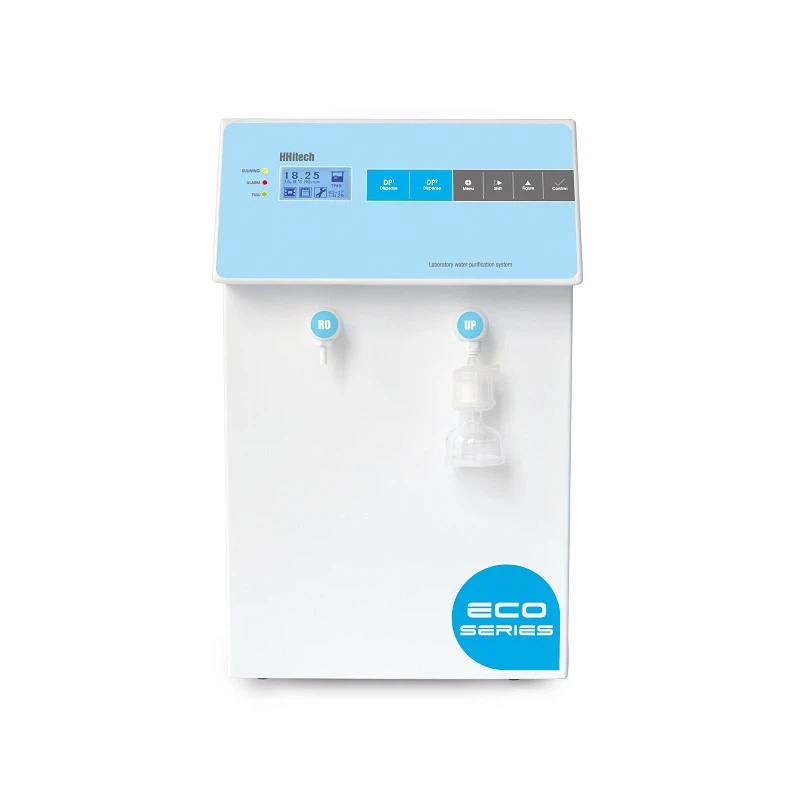

With LCD controlling system, 2 way water quality sensors, timing and quality dispensing, single stage RO system, 1 pump, and built-in 12 liters tank, Eco-S series ultrapure water system is economic choice of ultrapure water for high grade experiments.
With tap water inlet, its output ranges from 15 to 30 liters/hour. It can produce single stage RO water and ultrapure water. The single stage RO water’s ion rejection rate is more than 97%, and the ultrapure water’s resistivity absolutely reaches to 18.2MΩ.cm. It completely meets the highest grade I standard of ASTM, CAP, CLSI, EP and USP.
Models:
Eco-S15 / 30
Eco-S15 / 30UF
Eco-S15 / 30UV
Eco-S15 / 30UVF
Features and Advantages
Micro-computer control system with LCD display LCD (resolution: 128×64, dimension: 66×33mm) controlling system, intuitively display the system running state and various parameters. |
|
Comprehensive monitoring system 2 way online water quality sensors, detect the quality of RO water, deionized water, or ultrapure water respectively. And warn once water quality´s standard exceeding. Water dispensing function- timing and quality (time range: 1-99min, water quality range: 0.1-18.2MΩ.cm). |
|
Easy-to-replacing cartridge Independent pretreatment design, and integrated subsequent purification unit design, with fast inserted adapters, easy to replace. |
|
Built-in water tank and 1 pump Built-in 12 liters airtight plastic pressure water tank, save laboratory space, easier for installation and maintenance. 1st pump, to achieve single stage RO system, easy to maintain. |
|
Whole plastic shell with high-strength Excellent ergonomic design, avoid rusting and keep clean, to meet GLP standard. |
|
Cartridges replacing alarm function, based on time and water quality, show cartridges´ used and residual life.
Multiple alarm function: no feed water, full water, water quality´s standard exceeding, and cartridge life ending.
Auto self-flushing of RO membrane function, extend RO membrane´s life.
Level II password, protect all the parameters setting, and prohibit any unauthorized setting change.
System time setting (year/month/day/hour/minute).
3 kind of status lamp-running, alarm and full water, convenient to know system status.
External water tanks is optional to meet different need and assure ample water-supply.
3 doors and easy-to-replacing cartridge design, convenient to maintain system and replace cartridges.
Tube and adapter with NSF authorization and top quality, reduce TOC level and assure ultrapure water´s quality.
Optimized pretreatment (including PP fiber, KDF and active carbon cartridge), effectively protect RO membrane.
RO module with DOW´s membrane, ensure long life, stable operation and high desalinization rate.
4 in 1 ultrapure cartridge (can be divided to 4 independent cartridge) with DOW´s top polishing resin, ensure ultrapure water´s quality up to 18.2 MΩ.cm, with the lowest TOC level.
Double wavelength (185&254nm) ultraviolet lamp module, restrain bacteria´s increase and reduce TOC.
MWCO 5000D ultrafiltration module, effectively eliminate endotoxin, and suitable for precise cell cultivating and IVF.
(0.45+0.1)µm double layer PES terminal disinfection filter, assure that terminal pure water is absolutely axenic.
Flow Schematic
Specifications
Model | Standard | Eliminating endotoxin | Low TOC | Synthesizing |
Eco-S15 | Eco-S15UF | Eco-S15UV | Eco-S15UVF | |
Eco-S30 | Eco-S30UF | Eco-S30UV | Eco-S30UVF | |
Output (25°C)* | 15series-15 liters/hour, 30 series-30 liters/hour | |||
Flow rate | Up to 2 liters/minute (with pressure tank) | |||
Pure water outlet | 2: reverse osmosis water, ultrapure water | |||
Ultrapure water quality | ||||
Resistivity (25°C) | 18.2MΩ.cm | |||
TOC* | <10ppb | <10ppb | <3ppb | <3ppb |
Bacteria | <0.01cfu/ml | |||
Particle (>0.1µm) | <1/ml | |||
Endotoxin | N/A | <0.001Eu/ml | N/A | <0.001Eu/ml |
RNases | N/A | <1pg/ml | N/A | <1pg/ml |
DNases | N/A | <5pg/ml | N/A | <5pg/ml |
RO water quality | ||||
Ion rejection rate | 97%-99% (new RO membrane) | |||
Organic rejection rate | >99%, when MW>200 Dalton | |||
Particles and bacteria rejection rate | >99% | |||
Feed water requirements | Tap water, temperature: 5-45°C, pressure: 1.0-4.0Kgf/cm2 | |||
Dimension and weight | Length×Width×Height: 340×500×560mm / Weight: about 18Kg | |||
Electrical requirements | AC100-240V, 50/60Hz | |||
Power | 72W | |||
Standard configuration | Main body (Including 1 set of cartridge) + built-in 12 liters pressure tank | |||
Remarks:
*The value will be influenced by temperature and feed water’s quality.
Cartridges
Item no. | Commodity | Approximate replacement term /set |
LAMP-(185nm&254nm) -10W-M | Double wavelength (185&254)nm uv lamp | 9000 hours |
LAMP-254-10W-M | 254 nm wavelength uv lamp | 9000 hours |
PC-M-PP | 5µm spun fiber cartridge | 2-6 months |
PC-M-KDF | KDF+ granular active carbon mixed cartridge | 12 months |
PC-M-AC-G | Granular active carbon cartridge | 6 months |
RO-100GPD | 100 GPD reverse osmosis membrane | 12-24 months |
RO-200GPD | 200 GPD reverse osmosis membrane | 12-24 months |
PTC-AC-HZB1 | Reducing TOC cartridge | 9000 liters pure water |
PTC-MBR-M | Mixed bed resin cartridge | 1000 liters pure water |
PTC-MBR-M4 | 4-in-1 mixed bed resin cartridge module | 4000 liters pure water |
PTC-UPPR-M | Ultrapure polishing resin cartridge | 1000 liters pure water |
PTC-UPPR-M4 | 4-in-1 ultrapure polishing resin cartridge | 4000 liters pure water |
TF-(0.45+0.1)µm-S | (0.45+0.1)µm terminal filter | - |
UF-5000D | MWCO5000D UF cartridge | - |
LAMP-(185nm&254nm) -10W-M | Double wavelength (185&254)nm uv lamp | 9000 hours |
LAMP-254-10W-M | 254 nm wavelength uv lamp | 9000 hours |
Remarks:
*The quality of inlet water will effect cartridge’s life.
*When inlet water’s TDS>200ppm, Replace term of filter will be suggested to decrease, or outside pre-filter is added. Or water quality and life of ultrapure cartridge will be affected.
HHitech-Products
Designing and manufacturing under ISO certification, top quality controlling commitment, ensure compliance with CE standards of EU, guarantee completely meeting with the highest grade I water standards of ASTM, CAP, CLSI, EP and USP.
HHitech-Service
As a responsible manufacturer with rich experience, operating in good faith, and the concept of common development, adhering to the customer-oriented and customer-needs, HHitech promises to provide professional comprehensive pre-sales and after-sales service in the whole business.
■ 12 months warranty except for consumables.
■ Timely guide for installation, usage and maintenance.
■ Free and continuous upgrade service for sold products.
